Ice is a food. In a Kuwait hotel, restaurant or café, it goes straight into drinks, onto seafood counters and into buffet displays, and the machine that makes it runs flat out through the long summer. The Everpure Insurice i2000, made by Pentair, is a filter system built only for commercial ice machines. It cleans the water on the way in, which protects both the ice and the machine.
This guide covers what the i2000 does, how to choose between the Single and Twin systems, the installation limits in Pentair's own specification sheets, and how to keep cartridges changed on time on a Kuwait site. Sovereign Water supplies, installs and maintains Everpure ice machine filtration for foodservice sites across Kuwait.
TL;DR
- The i2000 filters ice machine feed water. It reduces chlorine taste and odour, chloramines, particles and cysts, and reduces scale in the machine.
- Pentair's current version is the i2000² (i2000 squared), sold as Single and Twin systems, with PF versions of each.
- The Single system suits cubers up to about 227 kg (500 lb) of ice a day. The Twin suits cubers up to about 658 kg (1,450 lb) a day.
- Both run at 0.7 to 8.6 bar and take feed water from 2°C to 38°C. Never connect them to a water-cooled condenser.
- Pentair sets a regular 6-month cartridge change, or sooner if capacity is reached or the flow drops.
What Is the Everpure Insurice i2000?
The Insurice i2000 is a wall-mounted filter head and cartridge that fits on the water line feeding an ice machine. It needs no electrical supply. Each cartridge combines two Everpure technologies.
| Feature | What it does |
|---|---|
| Precoat filtration | Reduces chlorine taste and odour, and filters out dirt and particles as small as 0.2 micron by mechanical means |
| Micro-Pure II media | Inhibits the growth of bacteria on the filter media, which could otherwise shorten the cartridge's life |
| Scale reduction | Reduces scale and clogging in the distribution lines, the evaporator plate (the cold plate where ice forms) and the pump |
| Certification | Tested and certified by NSF International to NSF/ANSI Standards 42 and 53, including cyst reduction such as Cryptosporidium and Giardia |
Pentair's Single system sheet also lists reduced chloramines and particulates, both of which can spoil the taste of drinks. The 0.2 micron figure is validated by an ISO 17025 accredited laboratory, according to Pentair.
Why Ice Machines in Kuwait Need Filtration
Most of Kuwait's drinking water comes from desalinated seawater. Because desalinated water is so low in minerals, it is blended with brackish groundwater before it reaches the network, to meet World Health Organization guidelines (Fanack Water). The blend adds minerals back, and the mix can vary by area and season. Many buildings also store water in rooftop or basement tanks, where sediment can settle and the water warms up.
An ice machine freezes water layer by layer and drains away what is left, so the minerals and particles in that supply end up on its evaporator, pump and water lines. Chlorine used to keep the supply safe can also carry through into the taste of the ice. Our guide to water quality in a Kuwait commercial kitchen looks at the wider supply, and TDS and ppm in Kuwait explains what the readings mean.
What Poor Water Does to an Ice Machine
The trouble builds up slowly. Scale on the evaporator makes the freeze and harvest cycles less efficient, so the machine works longer for less ice. Sediment can block the water distribution tube and spray holes, which can leave cubes thin or badly formed. Taste and odour carry straight into every drink served with that ice.
Then come the service calls. Descaling and sanitising take the machine out of use, and the worst time for that is a hot July week when the bar needs more ice, not less. Filtering the water at the inlet costs far less than cleaning scale out of the machine later.
Choosing Single, Twin or PF
Choose the system by your machine's daily ice output and the water flow it draws, not by the price of the cartridge. Pentair lists four i2000² systems.
| System | Pentair item | Rated capacity | Maximum service flow |
|---|---|---|---|
| Insurice Single-i2000² | EV932401 | 34,069 litres (9,000 gal) | 6.3 litres per minute (1.67 gpm) |
| Insurice Twin-i2000² | EV932402 | 68,137 litres (18,000 gal) | 12.6 litres per minute (3.34 gpm) |
| Insurice Single PF-i2000² | EV932421 | 34,069 litres (9,000 gal) | 6.3 litres per minute (1.67 gpm) |
| Insurice Twin PF-i2000² | EV932422 | 68,137 litres (18,000 gal) | 12.6 litres per minute (3.34 gpm) |
Pentair's specification sheets match each system to a range of machines.
| System | Cuber ice machines | Flaker ice machines |
|---|---|---|
| Single-i2000² | Up to about 227 kg (500 lb) a day | Up to about 680 kg (1,500 lb) a day |
| Twin-i2000² | Up to about 658 kg (1,450 lb) a day | Up to about 998 kg (2,200 lb) a day |
Service flow must never go above the rated figure. If a site has several machines on one line, or a machine bigger than the Twin covers, the Insurice i4000 series is built for heavier loads. Our site survey confirms which one fits.
Installation Limits from Pentair's Specification Sheets
| Item | Single-i2000² (EV9324-01) | Twin-i2000² (EV9324-02) |
|---|---|---|
| Working pressure | 0.7 to 8.6 bar (10 to 125 psi), non-shock | 0.7 to 8.6 bar (10 to 125 psi), non-shock |
| Water temperature | 2°C to 38°C (35°F to 100°F) | 2°C to 38°C (35°F to 100°F) |
| Water line | 3/8" | 3/4" |
| Size (H x W x D) | 61.1 x 20.4 x 13.3 cm | 64.1 x 42.1 x 13.9 cm |
| Operating weight | 4 kg | 8.1 kg |
| Electrical connection | None | None |

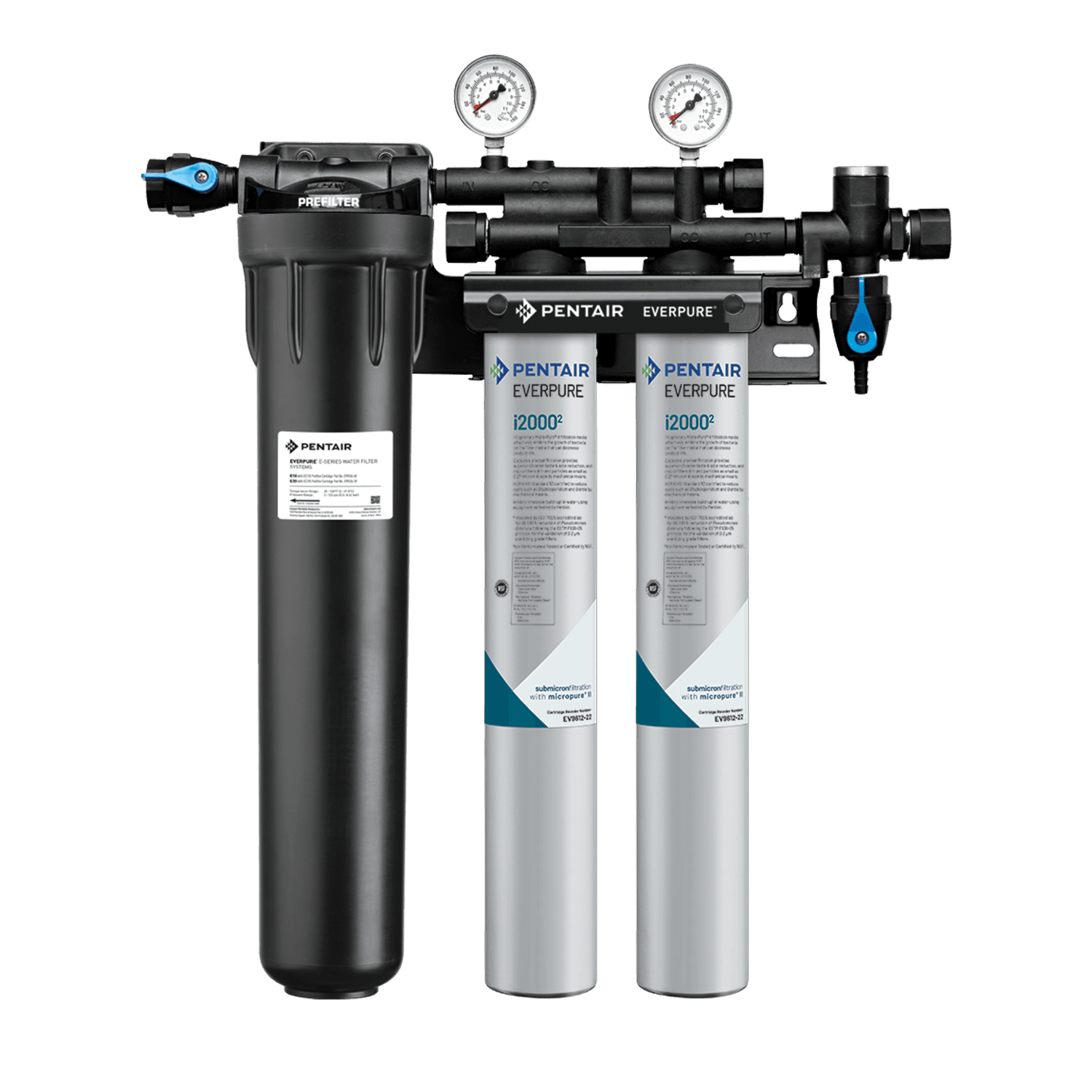

The same rules apply to both. Never use a saddle valve (a clamp-on tap that pierces the pipe) for the connection. Never connect the system to a water-cooled condenser. Mount it upright with the cartridges hanging down, and leave 6.35 cm clear below for cartridge changes. The Twin manifold has a water shutoff, a flushing valve and an outlet pressure gauge, which makes changes and checks quicker.
The 38°C top limit is worth checking in Kuwait. In summer, water from a rooftop tank or a pipe that runs through a hot ceiling space can arrive warm, so our survey measures the feed temperature where the filter will go.
Changing Cartridges on Schedule
The replacement cartridge is the EV9612-22, used in both systems. A filter only protects the machine while it is in date.
| Task | When |
|---|---|
| Change the cartridge | Every 6 months as planned maintenance, or sooner if its rated capacity is reached |
| Change it early | When the flow becomes too slow, or the pressure falls below 0.7 bar (10 psi) |
| Flush the cartridge | For 5 minutes at full flow, at installation and at every change |
A busy hotel bar or seafood restaurant can use its cartridge capacity well before six months, so we size the change interval to your real ice output. Our Comprehensive Maintenance plans book every change ahead and record each visit, so no machine runs on a spent cartridge.
When the i2000 Is Not Enough
The i2000 is a filter, not a disinfection system. Pentair states it must not be used on water that is microbiologically unsafe or of unknown quality without proper disinfection before or after it. It is also not a softener. Where the supply is very hard or high in dissolved solids, an upstream stage may be needed, such as a commercial softener or reverse osmosis. Our commercial water softener guide for Kuwait and reverse osmosis guide explain when each one makes sense. Check the ice machine maker's own water requirements too, because some set limits on softened or RO water.
For steamers and combi ovens on the same kitchen line, see our guide to Everpure Kleensteam.
How Sovereign Water Supports Kuwait Foodservice Sites
Every job starts with a site survey. We look at each ice machine's make, model and daily output, the line pressure, feed temperature, wall space and access. Then we specify the right i2000 or i4000 system and any pre-treatment, supply and fit it, flush and commission it, and show your team what to watch for. After that, planned maintenance keeps cartridges changed on time, with one point of contact for every site you run.
Frequently Asked Questions
What does the Everpure i2000 filter out?
It reduces chlorine taste and odour, chloramines and particles down to 0.2 micron, and it is certified to NSF/ANSI 53 for cyst reduction. It also reduces scale in the ice machine's lines, evaporator plate and pump.
Should I choose the Single or the Twin i2000?
Choose by daily ice output. Pentair rates the Single for cubers up to about 227 kg (500 lb) a day, and the Twin for cubers up to about 658 kg (1,450 lb) a day.
How often should the i2000 cartridge be changed?
Pentair recommends a regular 6-month change. Change it sooner if the rated capacity is reached, the flow becomes too slow, or the pressure falls below 0.7 bar.
Can the i2000 go on the condenser water line?
No. Pentair says the system must not be connected to a water-cooled condenser. It goes on the line that feeds the water used to make ice.
Does the i2000 need electricity?
No. It works on mains water pressure alone, between 0.7 and 8.6 bar.
Does the i2000 make unsafe water safe to drink?
No. It is designed for water that is already safe. Pentair says it must not be used on water that is microbiologically unsafe or of unknown quality without proper disinfection.
Ready to Protect Your Ice Machines?
Sovereign Water specifies, installs and maintains Everpure Insurice filtration for hotels, restaurants and catering sites across Kuwait, with pre-treatment where the water needs it. Talk to Our Team.
Sources
- Pentair Everpure, Insurice i2000² systems (models, capacity, flow rates)
- Pentair Everpure, Insurice Single-i2000² System EV9324-01 specification sheet (ice machine sizing, pressure, temperature, installation, cartridge changes)
- Pentair Everpure, Insurice Twin-i2000² System EV9324-02 specification sheet (ice machine sizing, manifold, installation)
- Pentair Everpure, i2000² cartridge EV9612-22 specification sheet (filtration, certification, replacement)
- Fanack Water, water quality in Kuwait (desalinated water blended with brackish groundwater)
